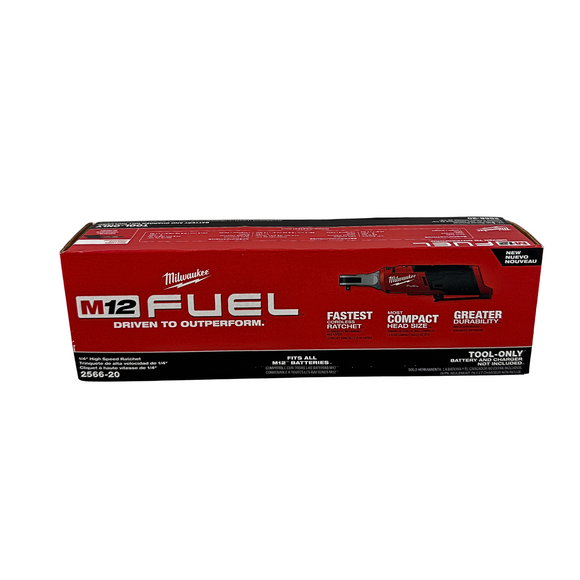

Red Milwaukee M12 FUEL tool box on a white background
Milwaukee Tool M12 FUEL 1/4" High Speed Ratchet (Tool Only Model) - 2566-20-2
Milwaukee Tool M12 FUEL 1/4" High Speed Ratchet (Tool Only Model) - 2566-20-3

Milwaukee Tool M12 FUEL 1/4" High Speed Ratchet (Tool Only Model) - 2566-20

$199.00

Shipping calculated at checkout

Milwaukee Tool SKU: RAT-0001-MWT Barcode: 045242593088

At a Glance

  • Fastest cordless ratchet in its class: up to 450 RPM for high productivity
  • 1/4" drive with compact head profile for tight access (0.75" head width)
  • Delivers up to 35 ft-lbs of max torque
  • Brushless motor for lasting power and improved durability
  • REDLINK PLUS™ Intelligence prevents overload and maximizes performance
  • All-metal paddle trigger and premium construction for extended tool life
  • Bare tool: requires any Milwaukee M12 battery (not included)

Why It’s Kwazzy Approved

Milwaukee’s® M12 FUEL™ High Speed Ratchet delivers real pro productivity for automotive and mechanical work. This cordless ratchet outpaces competing models with its superior speed, all while keeping its head size small enough for tough-to-reach areas. Its robust build, brushless power, and legendary Milwaukee warranty make it a clear step-up tool for techs, mechanics, and working pros.

Only 1 in stock!

Add $100.00 more for FREE shipping!
Description
 What's Included Specifications Physical Characteristics Warranty

The Milwaukee M12 FUEL 1/4" High Speed Ratchet (2566-20) sets the standard for performance, access, and longevity in compact cordless ratchets. Designed to be the fastest in its class, it turns at up to 450 RPM so you finish jobs quicker, whether you’re running fasteners or breaking things loose in tight corners.

Its brushless motor, linked by REDLINK PLUS™ electronics, means more work per charge and protection from overload, heat, and damage. The ultra-compact head profile fits where pneumatic and conventional ratchets struggle, all while providing up to 35 foot-pounds of torque for stubborn bolts. Unlike many other ratchets, the all-metal paddle switch and housing are built for day-in and day-out use.

The bare tool format gives flexibility for those already running other M12™ tools, and like the rest of the FUEL line, it’s built to handle the real-world demands of modern pros.

  • 1/4" High Speed Ratchet
Detail Specification
Manufacturer Milwaukee Tool
MFG Part # 2566-20
Battery Included No
Charger Included No
Drive Size 1/4"
Maximum RPM 450
Maximum Torque 35 ft/lbs.
Voltage 12V
Power Type Cordless Battery
Compatibility Milwaukee M12™
Country of Origin Mexico



Physical Detail Specification
Weight 1.95 lbs.
Length 11"
Width 3"
Height 3"
Color Red/Black



Manufacturer Limited Warranty: 5 yr warranty on material and workmanship

Beyond the box Beyond the box

Beyond the box

Tips, Tricks, Guidance, and More

Is a power ratchet worth it if I already have a manual set?

If you do a lot of repetitive work, work in tight spaces, or just want to save your wrists, a power ratchet is a huge time saver. It will not fully replace a manual ratchet or breaker bar, but it speeds up disassembly and assembly jobs and helps you get more done with less effort.

What is the real difference between a power ratchet and an impact wrench?

A power ratchet is built for speed and convenience in tight spaces. Think of it as a motorized version of a manual ratchet, great for quickly spinning fasteners on and off, especially where you do not have room to swing a hand tool.

An impact wrench delivers much higher torque using a hammering action and is made for breaking loose stuck or rusted bolts. If you need to bust loose tough hardware, reach for the impact wrench. If you want speed and access, grab the power ratchet.

How much torque do I actually need from a power ratchet?

Most power ratchets are designed for light to medium duty work, like interior panels, valve covers, hose clamps, or other fasteners under about 50 to 70 foot pounds. They are not made for lug nuts or heavy suspension bolts. For stuck or rusted bolts, use an impact wrench or breaker bar to break them loose. Always check your tool’s specs and use the right tool for the job.

What is the best way to avoid stripping or overtightening fasteners with a power ratchet?

Power ratchets make fast work of spinning fasteners, but it is easy to overtighten if you are not careful. Use the lowest speed setting if your tool has one and finish tightening by hand with a torque wrench for sensitive applications. This gives you control and helps you hit the right torque spec without damaging threads or crushing gaskets.
